Self Actuated Pressure Control Valve Functional Testing

 SELF ACTUATED PRESSURE CONTROL VALVE FUNCTIONAL TESTING

1) Pressure Reducing Method

Test Equipment Required :-

  1. Regulator
  2. Test Gauge

Typical Test Set-up

Functional Testing Procedure
a. Check instrument data, check for pressure requirement.

b. Check vendor’s specification sheet or instrument nameplate maximum allowable pressure.

c. Hook-up instrument as typical test set-up.

d. Open Valve A, note down pressure indication of the test gauge B as the set pressure.

e. If the set pressure is not as per specification carry out as follows:

  • Remove the cover of the set point adjustment screw
  • Adjust the set point screw until the test gauge indicates the desired pressure.
f. Records all results in Instrument Calibration Check sheets.

2) Back Pressure Regulator Method
Test Equipment Required :-
  • Regulator
  • Test Gauge

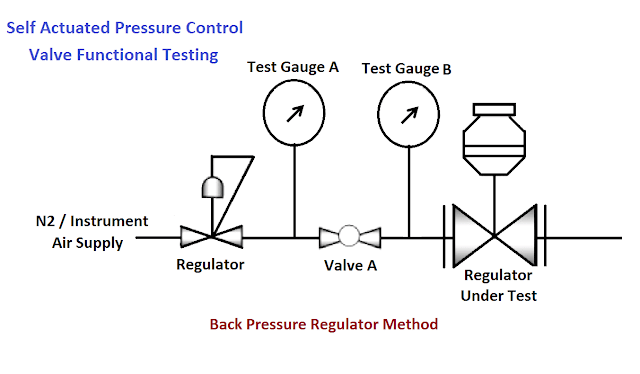

Typical Test Set-up
Functional Testing Procedure
a. Check instrument data, check for pressure requirement.

b. Check vendor’s specification sheet or instrument nameplate maximum allowable pressure.

c. Hook-up instrument as typical test set-up.

d. Open Valve A, note down pressure indication of the test gauge B as the set pressure.

e. If the set pressure is not as per specification carry out as follows:

  • Remove the cover of the set point adjustment screw
  • Adjust the set point screw until the test gauge indicates the desired pressure.
f. Records all results in Instrument Calibration Check sheets.
